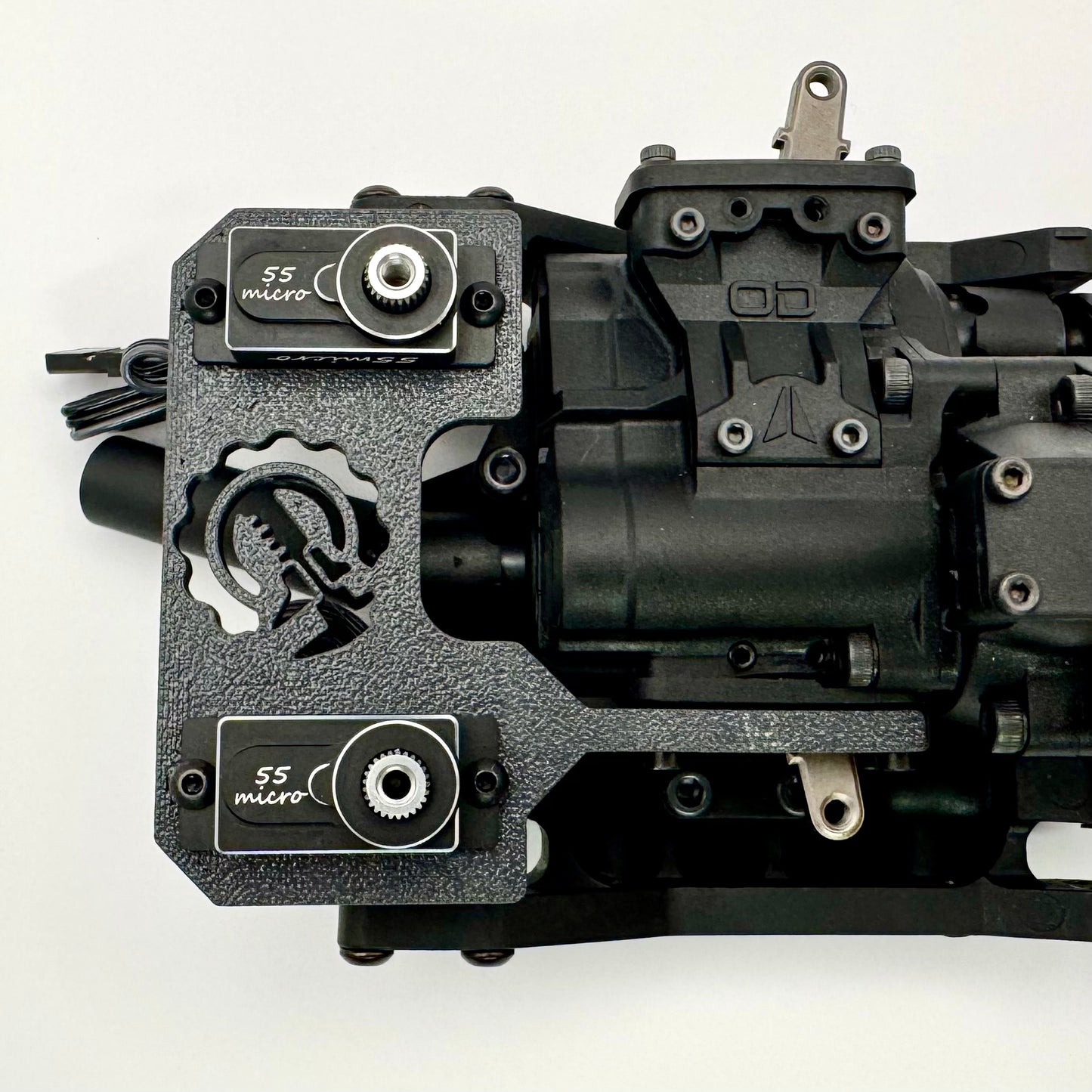

This mount allows for the use of (2) Reefs 55 micro shift servos for the VFD Twin transmission
Hardware included:
(4) M3x8mm
(4) M2.5x6mm
(4) M2x8mm

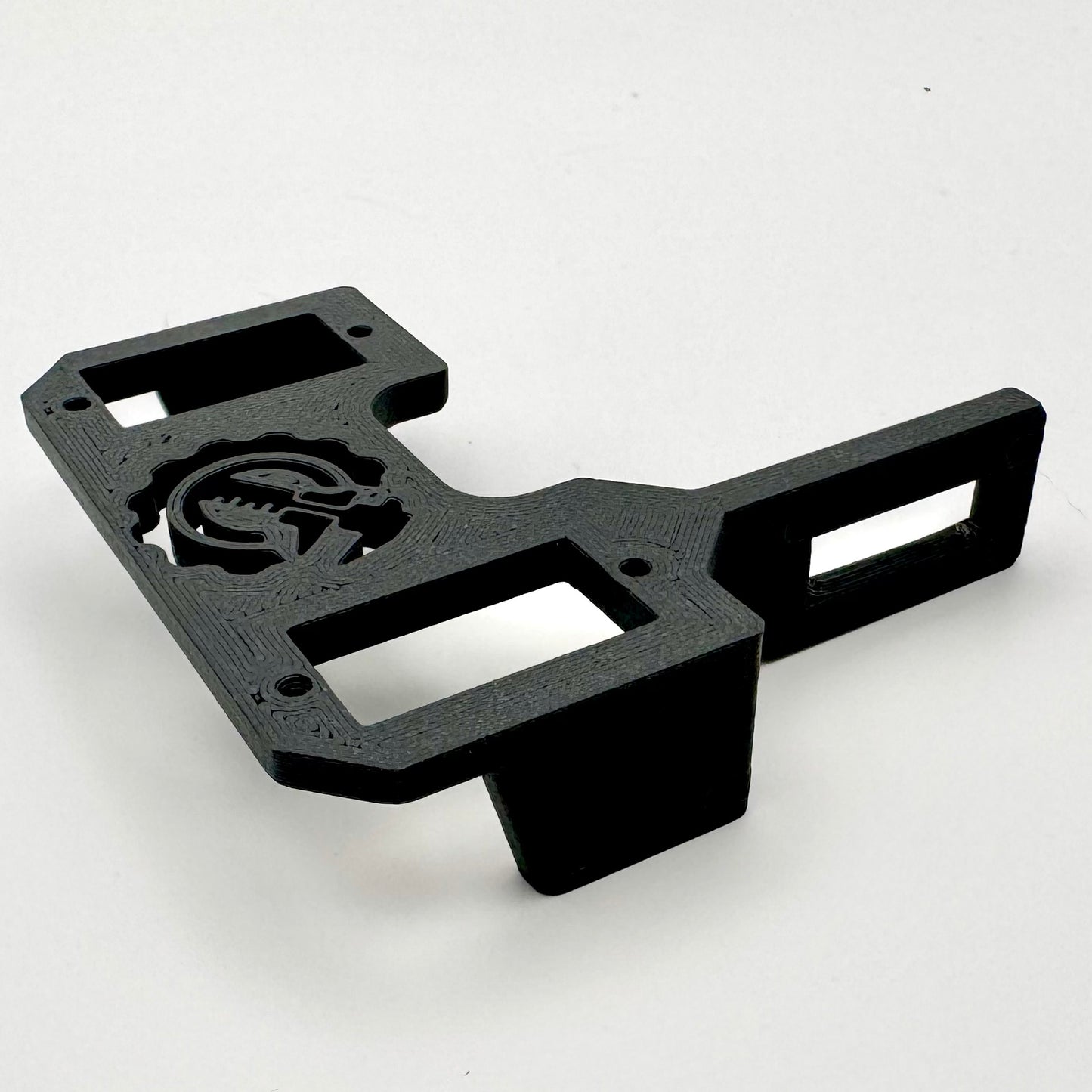

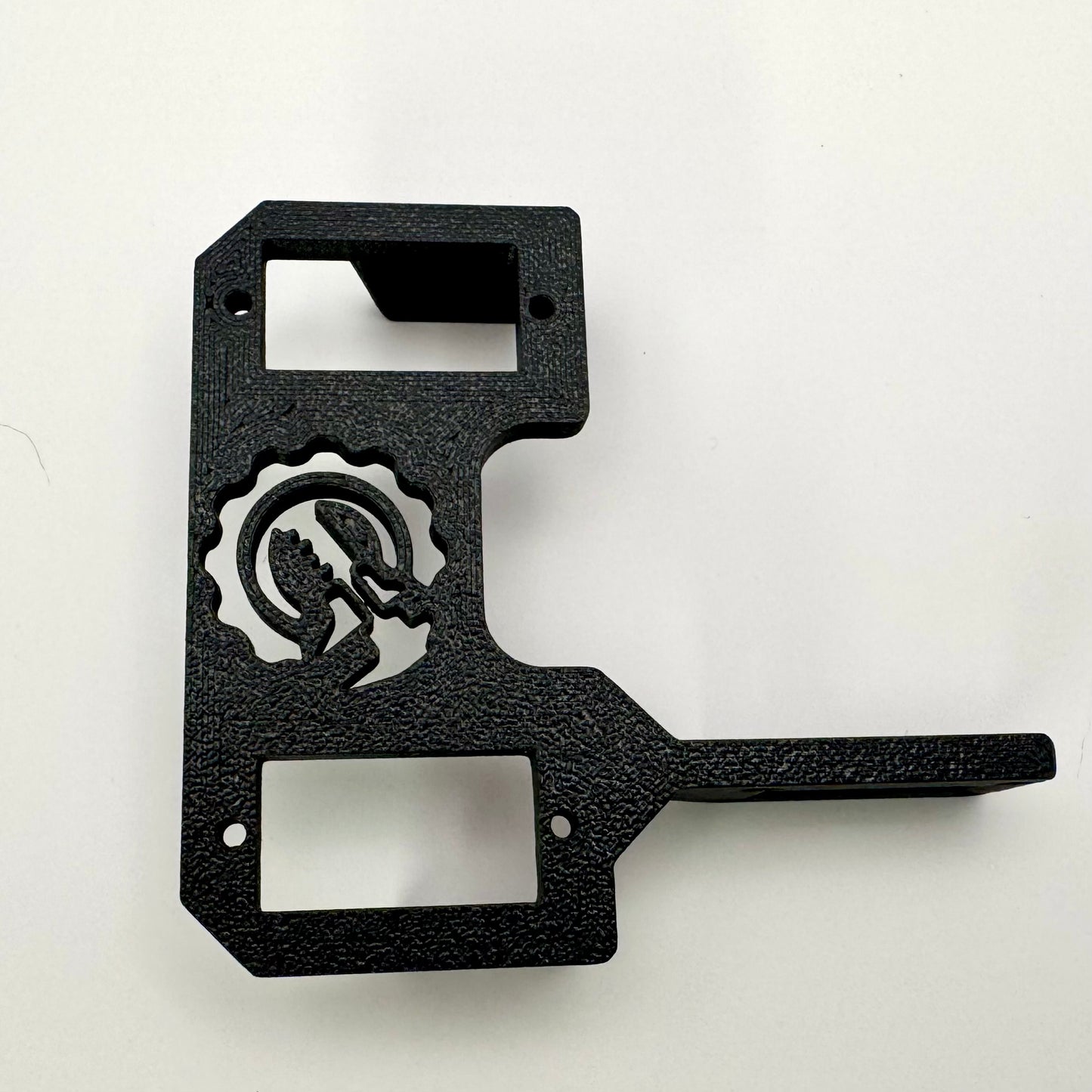

Printed in PETG-CF
Installation instructions:

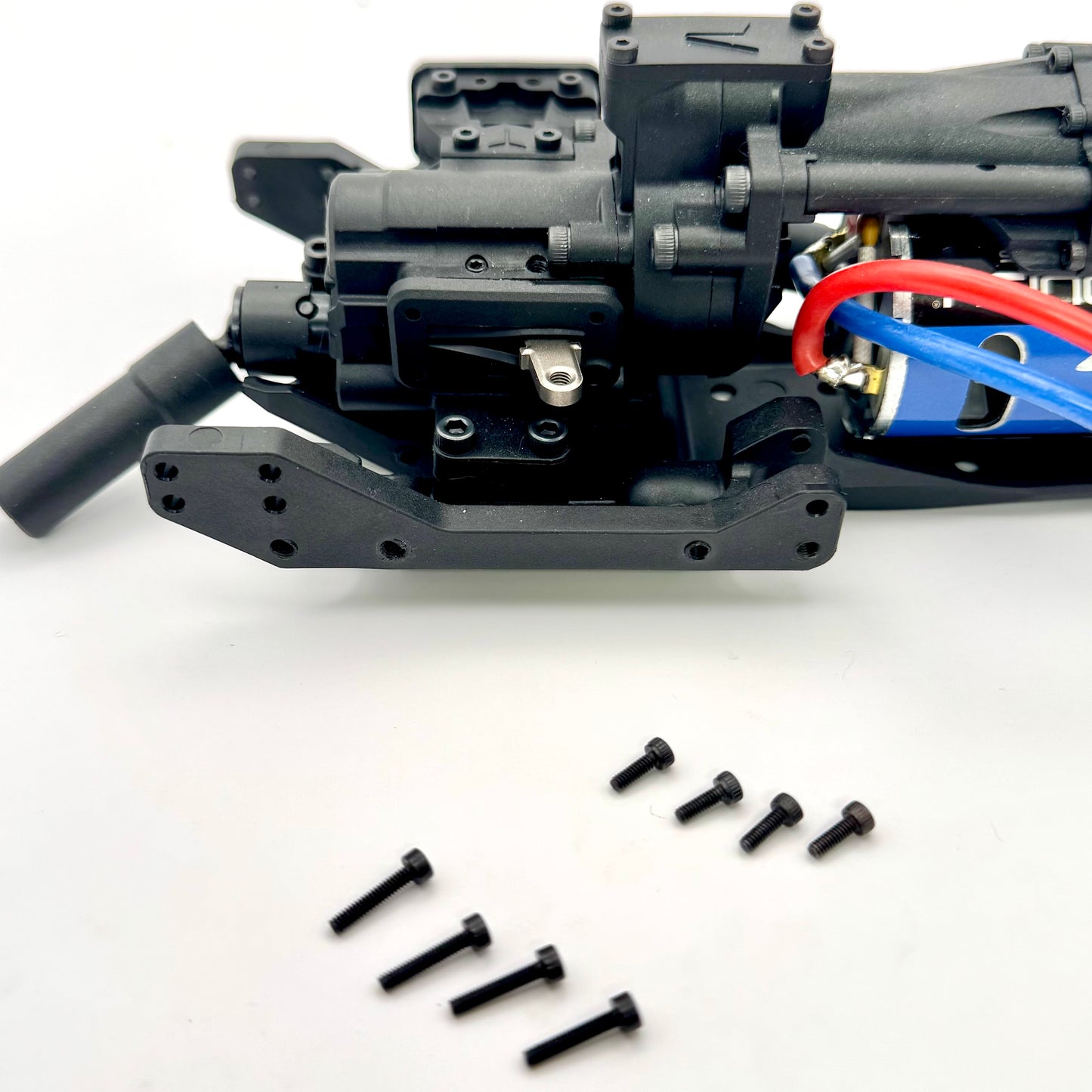

-Remove the (4) M2 screws that hold the Dig cover plate. Leave cover plate and gasket in place

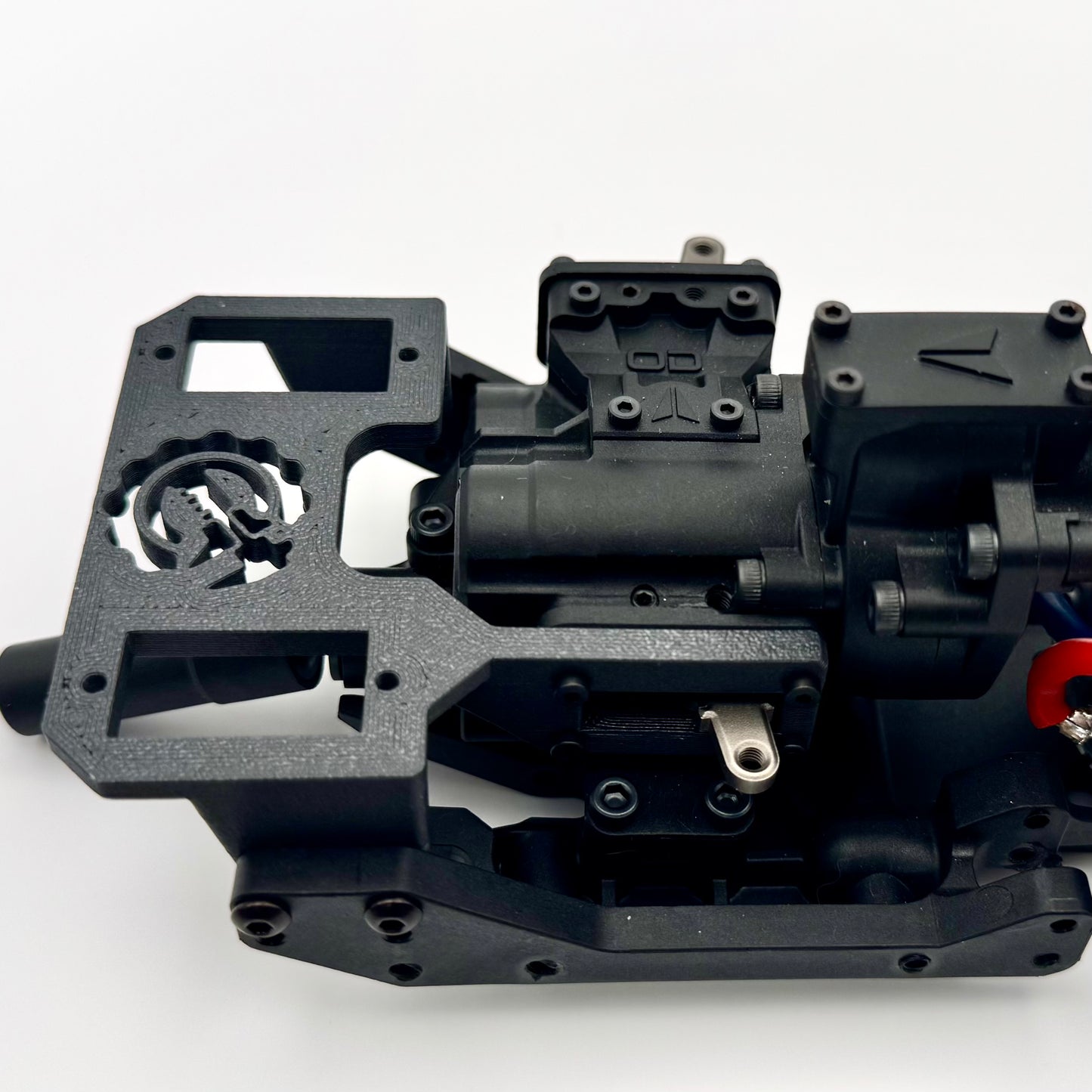

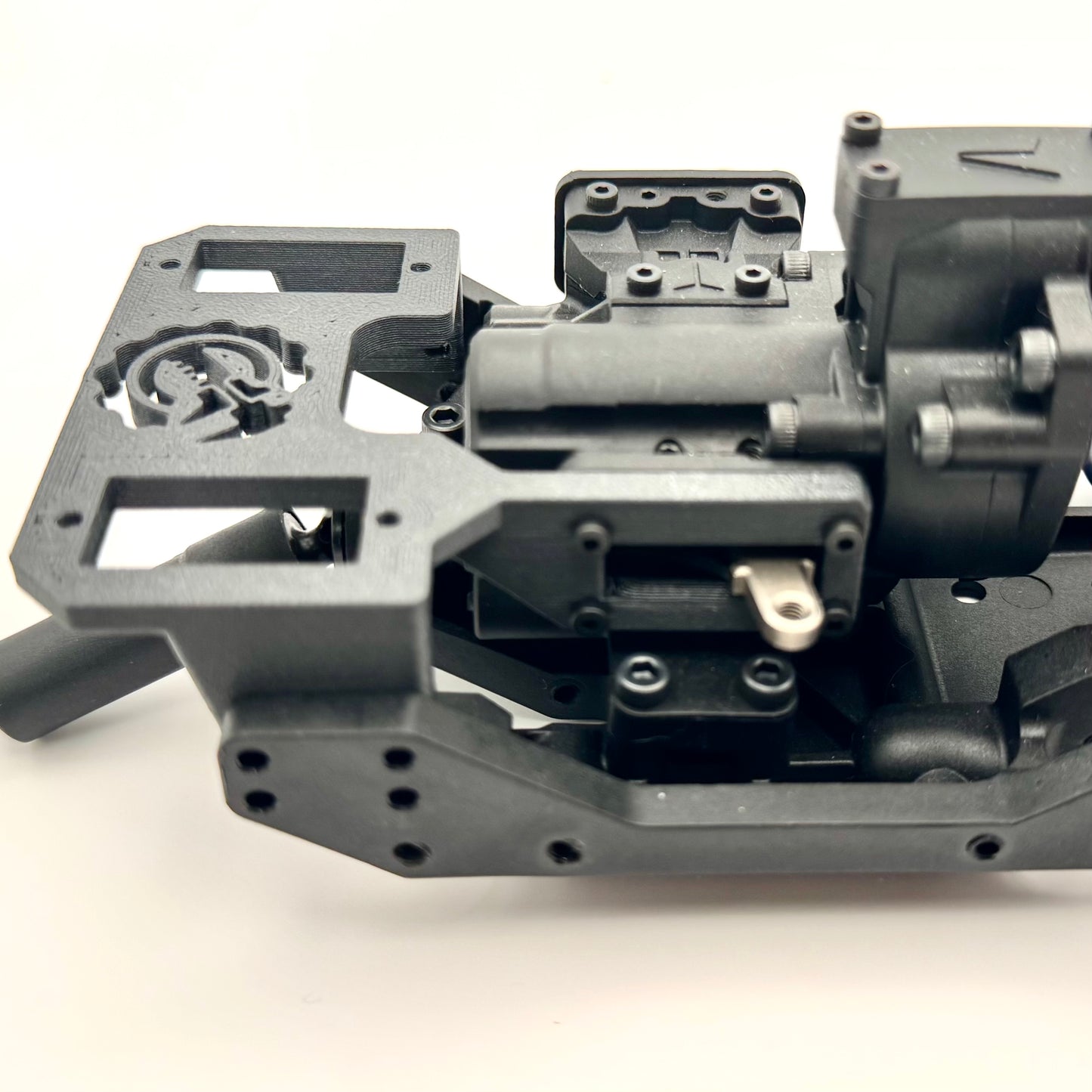

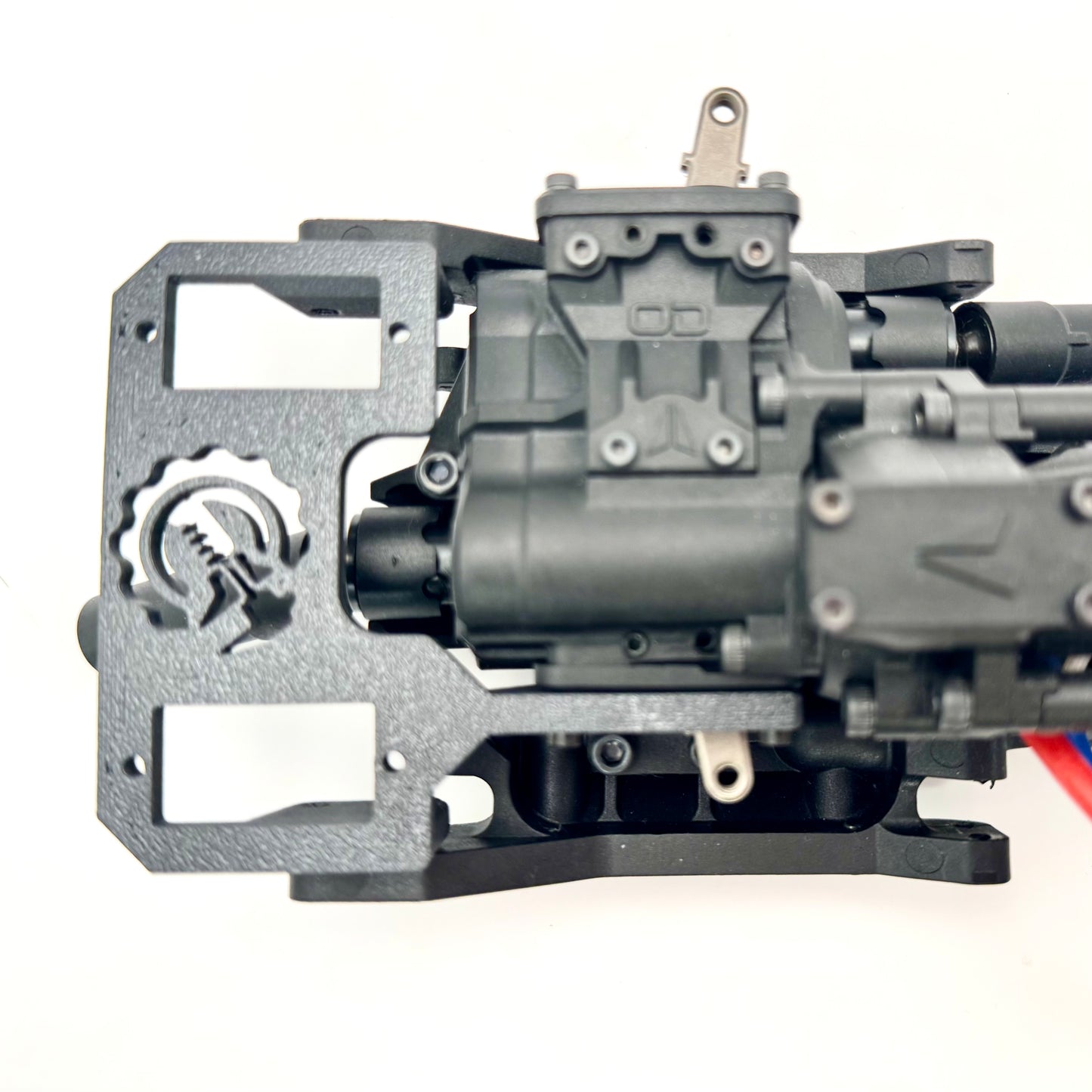

-Place mount into the skid plate and align the front flange with the Dig cover plate and install the M2x8mm screws. Be careful not to overtighten to avoid stripping the threads on the transmission case
-Install the M3x8mm screws into the top most link mount holes on the rear of the skid plate. Be sure the holes are lined-up to avoid damaging the mount

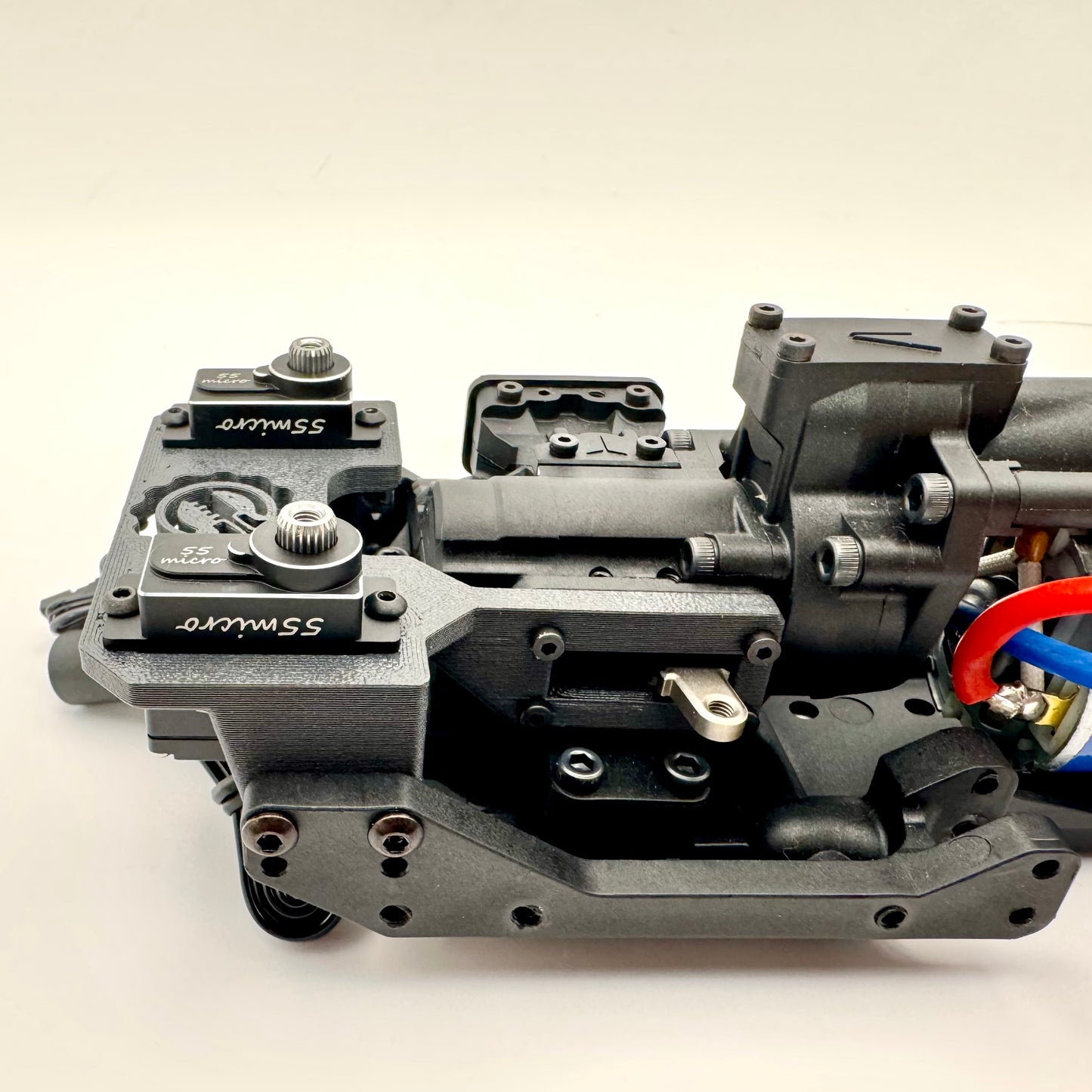

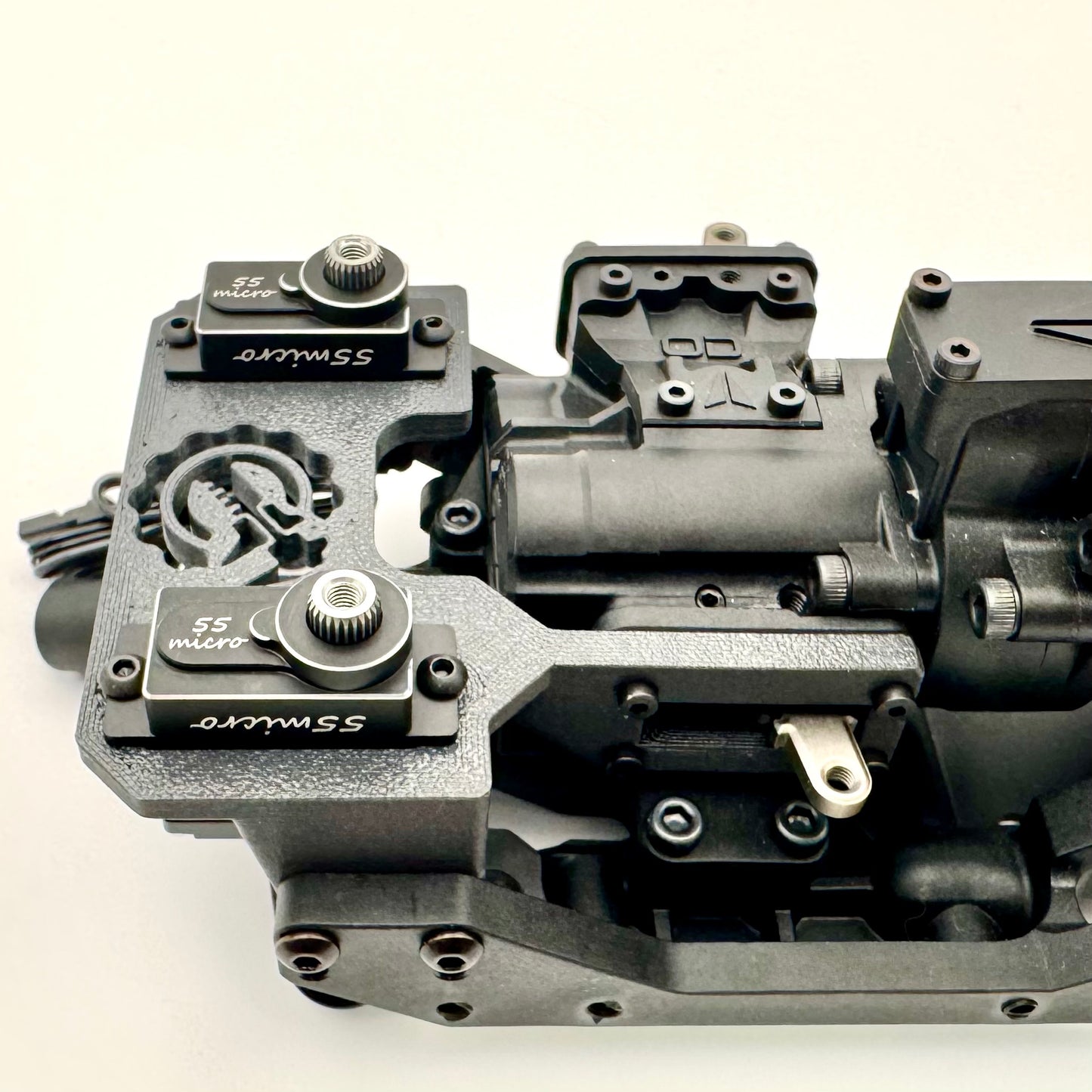

-Install the 55 micro servos with M2.5 screws. Servo wires can be run forward or backward depending on your set-up. The servo wires can be secured with zip ties to keep them away from the driveshaft

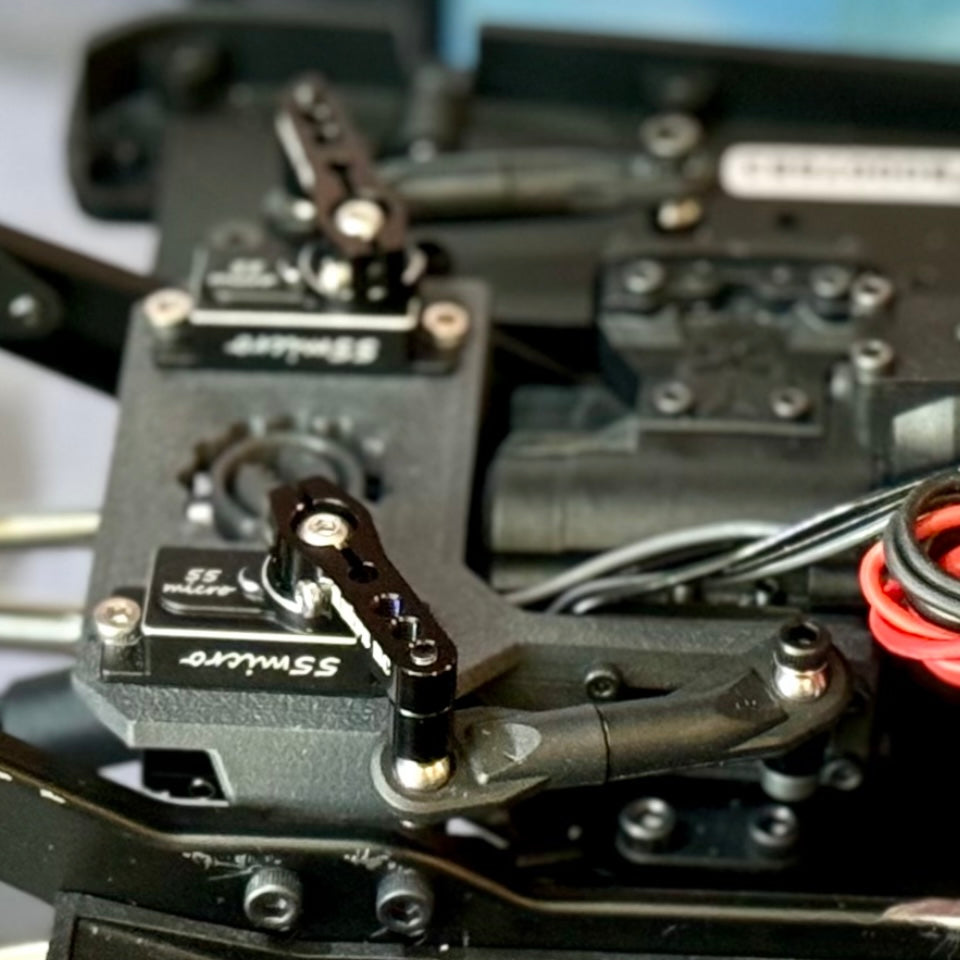

-Custom shift links can be made from rod ends and M4 grub screws. Length will vary depending on your exact set-up and chosen servo horns. Shift links are not included
*VS4-10 remove stock battery tray
*H10 Optic remove rear electronics tray
-Use care while setting your servo end points in your radio as the 55 micro, while strong enough for the task, can burn out easily if end points are not set properly!
Please reach out if you have any installation issues!
@cliffmccrawl or @cliffmccrawlindustries on IG/FB or cliffmccrawl@gmail.com
Also available as a free download for personal use only:
