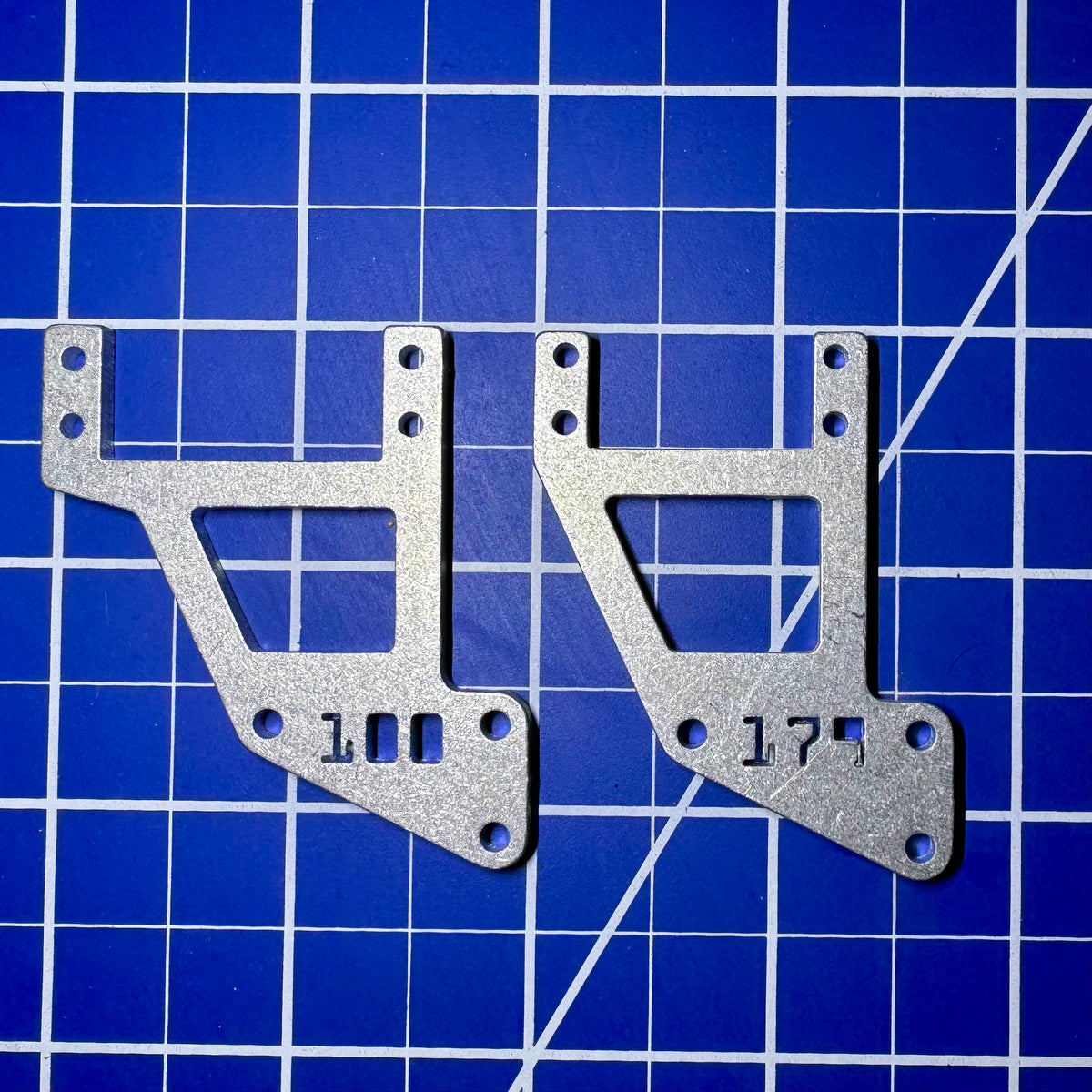

Replaces stock servo mount plate. Two versions allow for use of Reefs Raw100 or Reefs 179/99micro or various other micro servos such as Holmes Hobbies HV150(recommended)
Uses stock servo horn and shift linkage
6061 Aluminum, tumbled finish
8 grams
Installation:
Includes: (3) M3x10mm BHCP to mount to skid plate
M2.5 servo mounting hardware also included

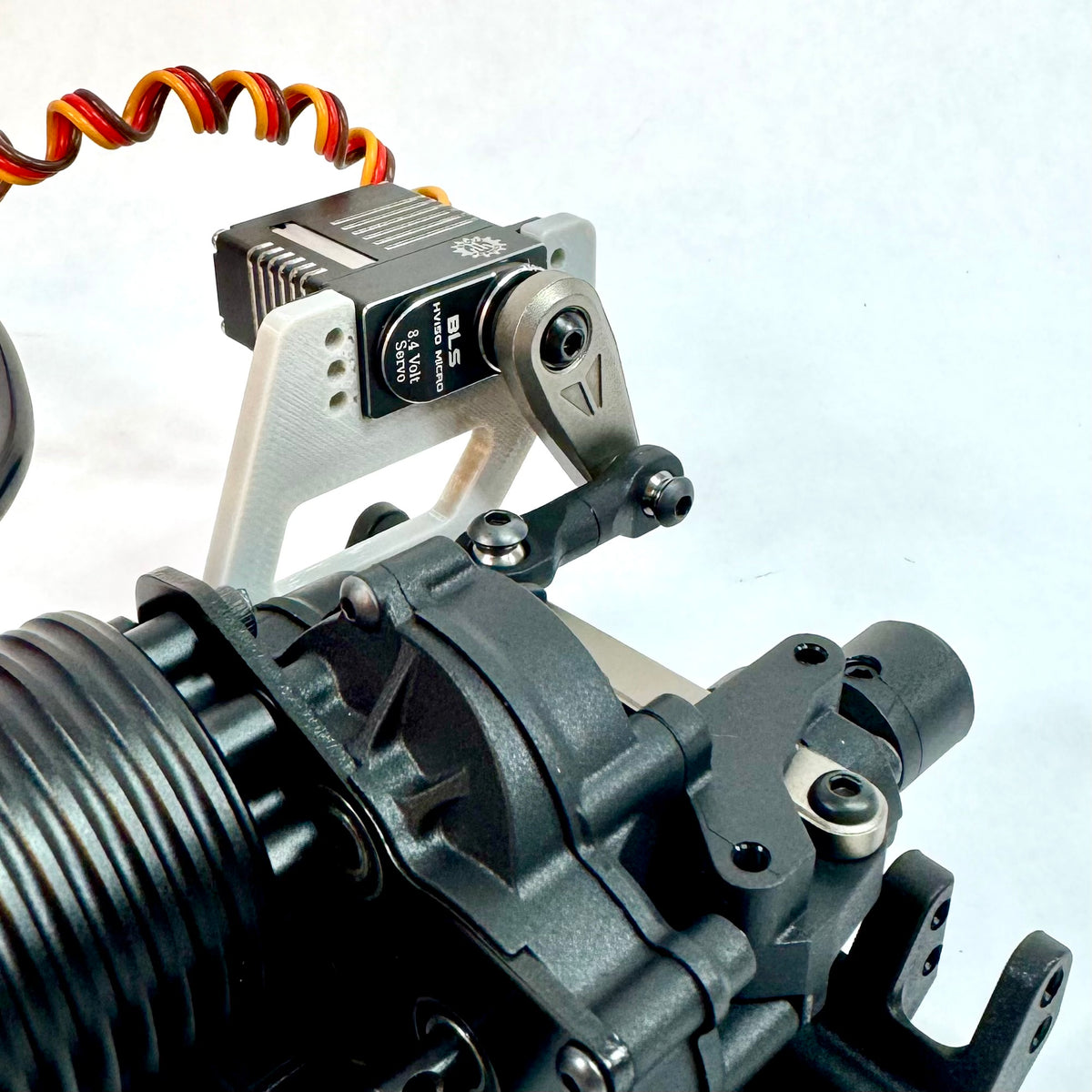

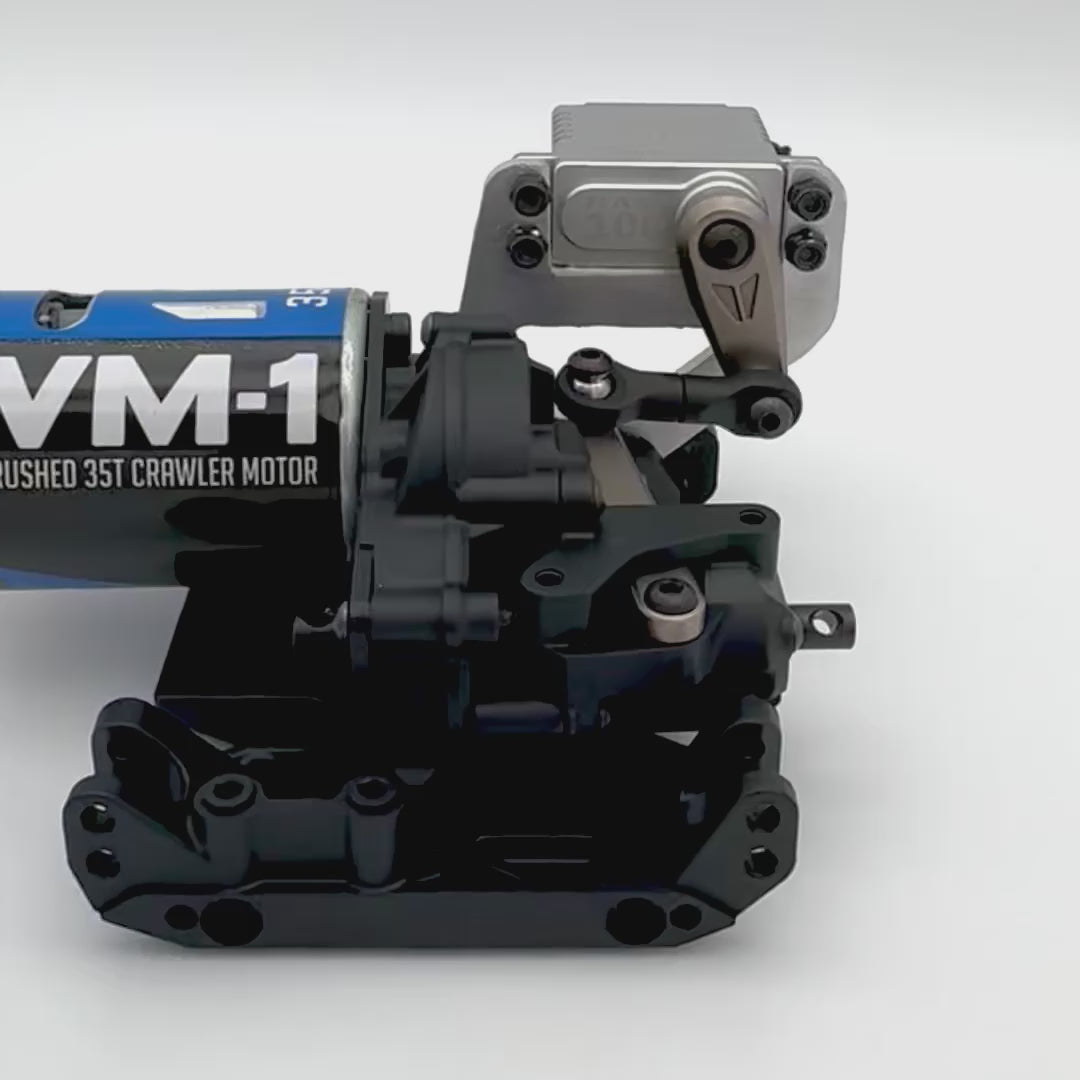

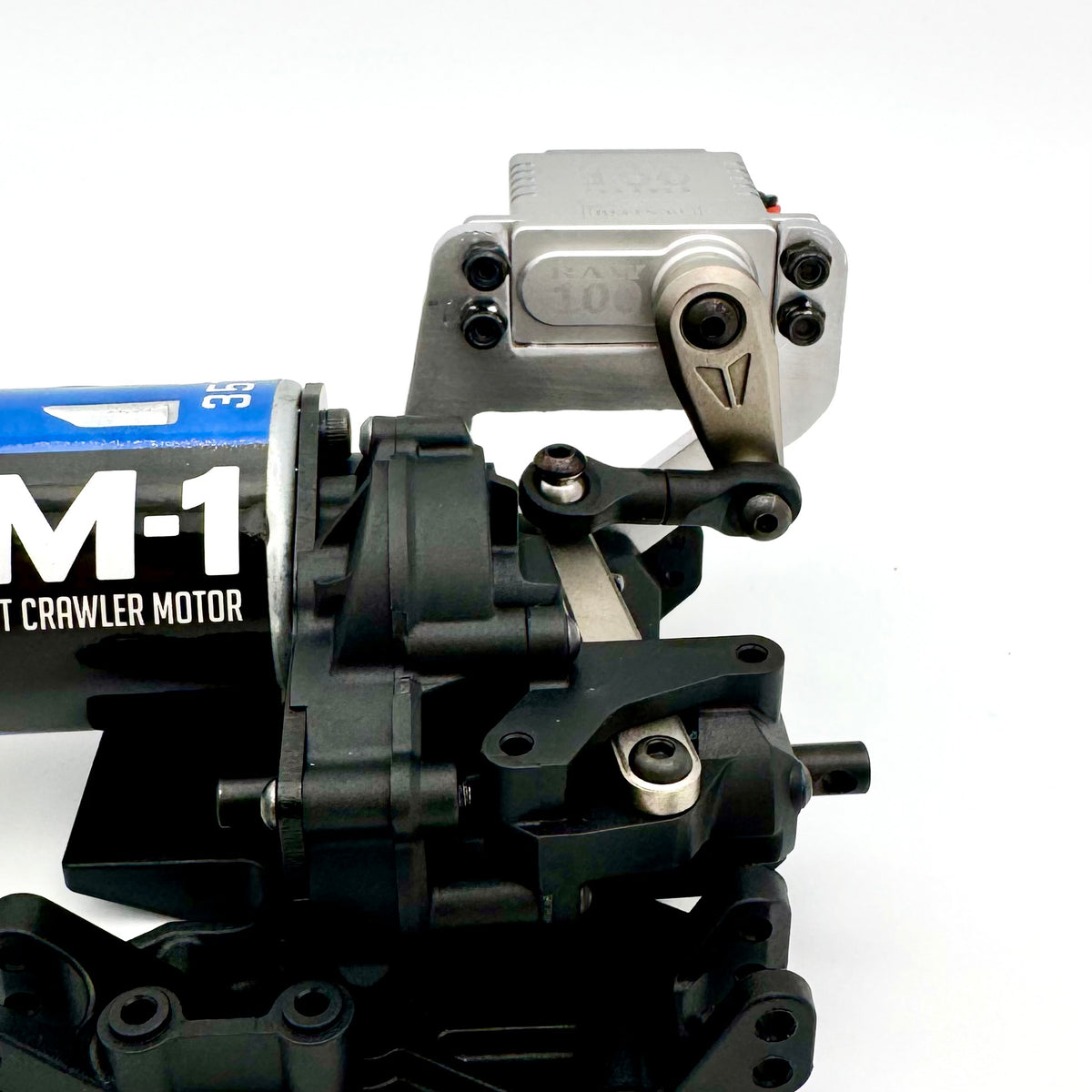

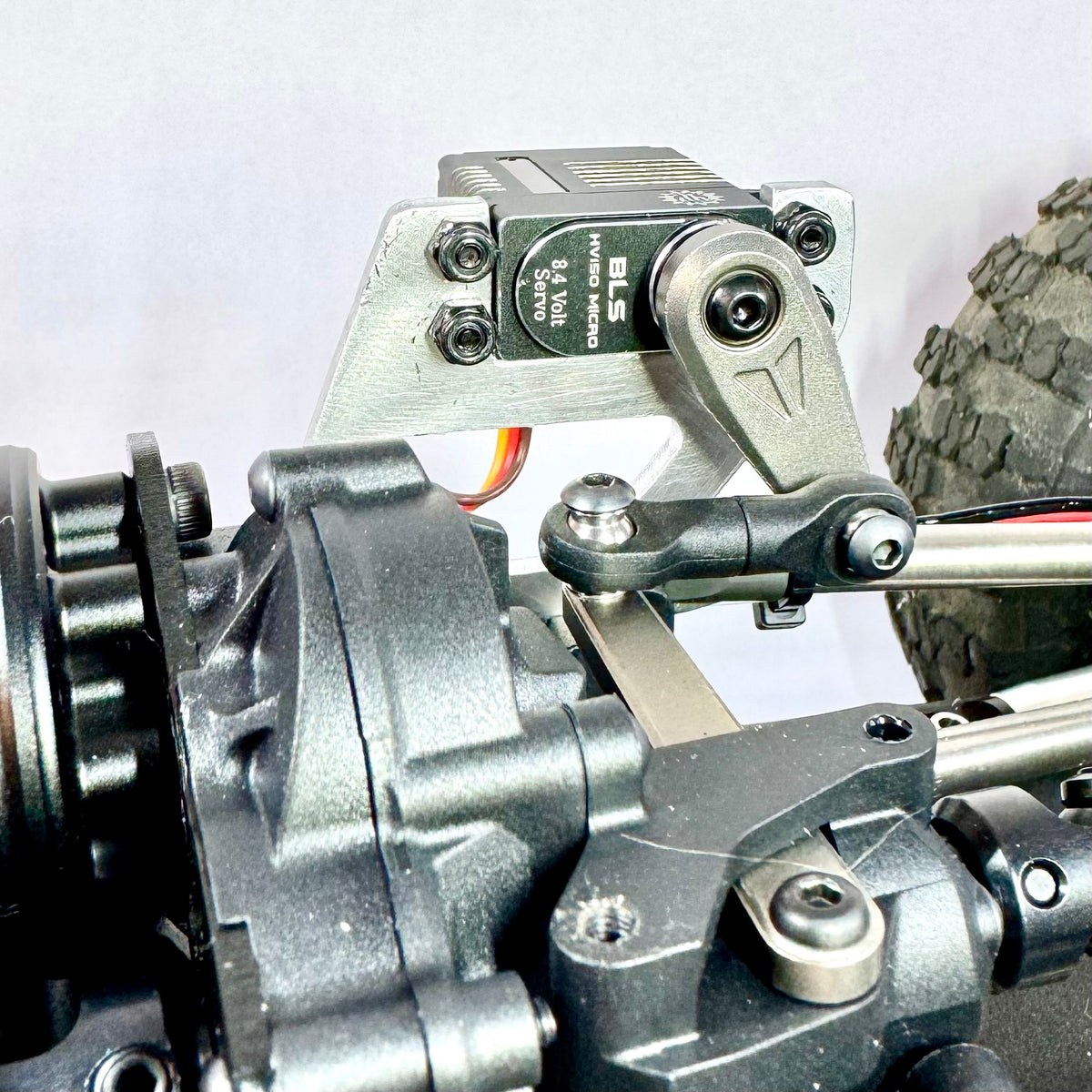

Servo can be mounted in front of or behind mount depending on your application. Servo mount hardware can be oriented in either direction. Be sure to allow clearance for the servo horn. Orient output shaft towards the rear.
Fit Guide:

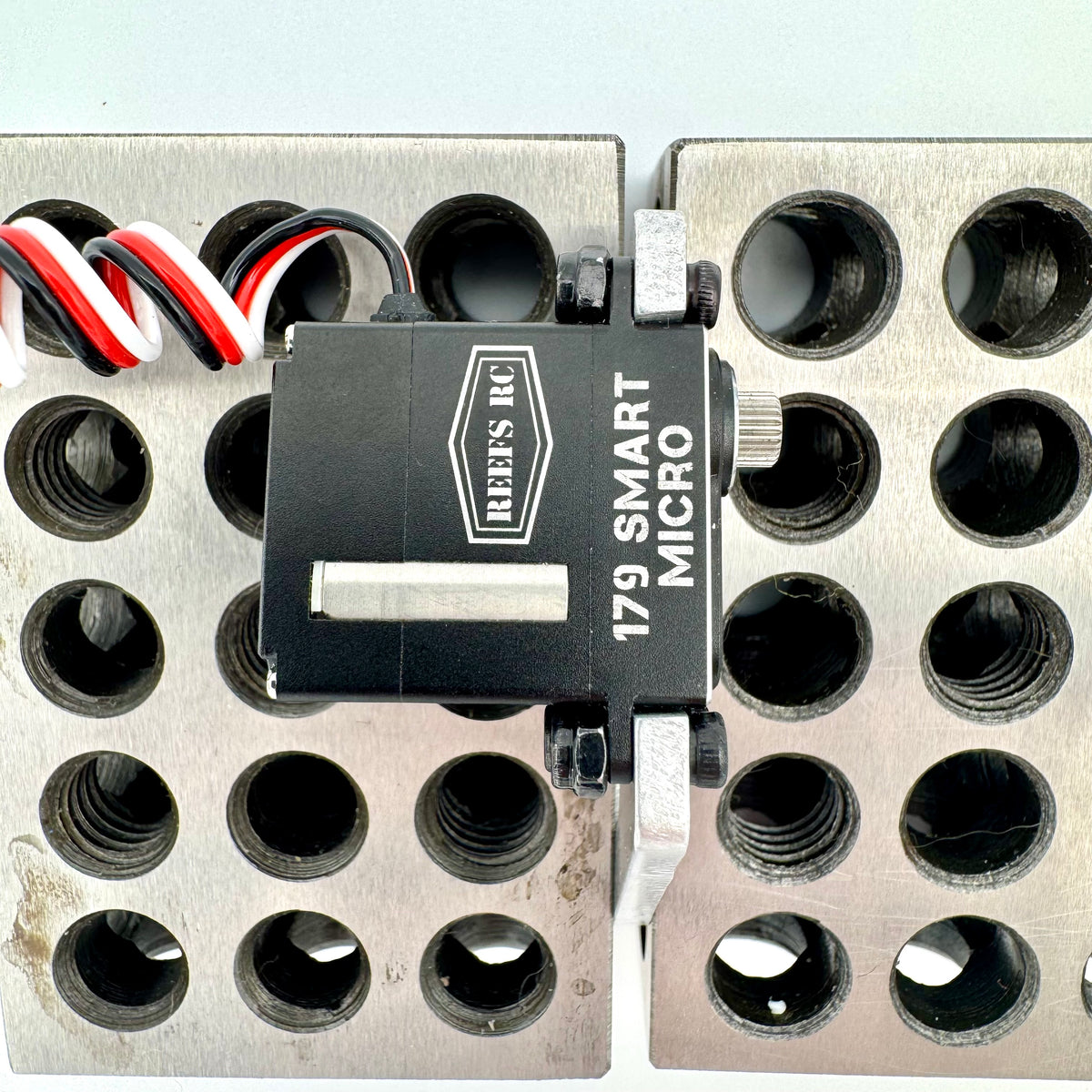

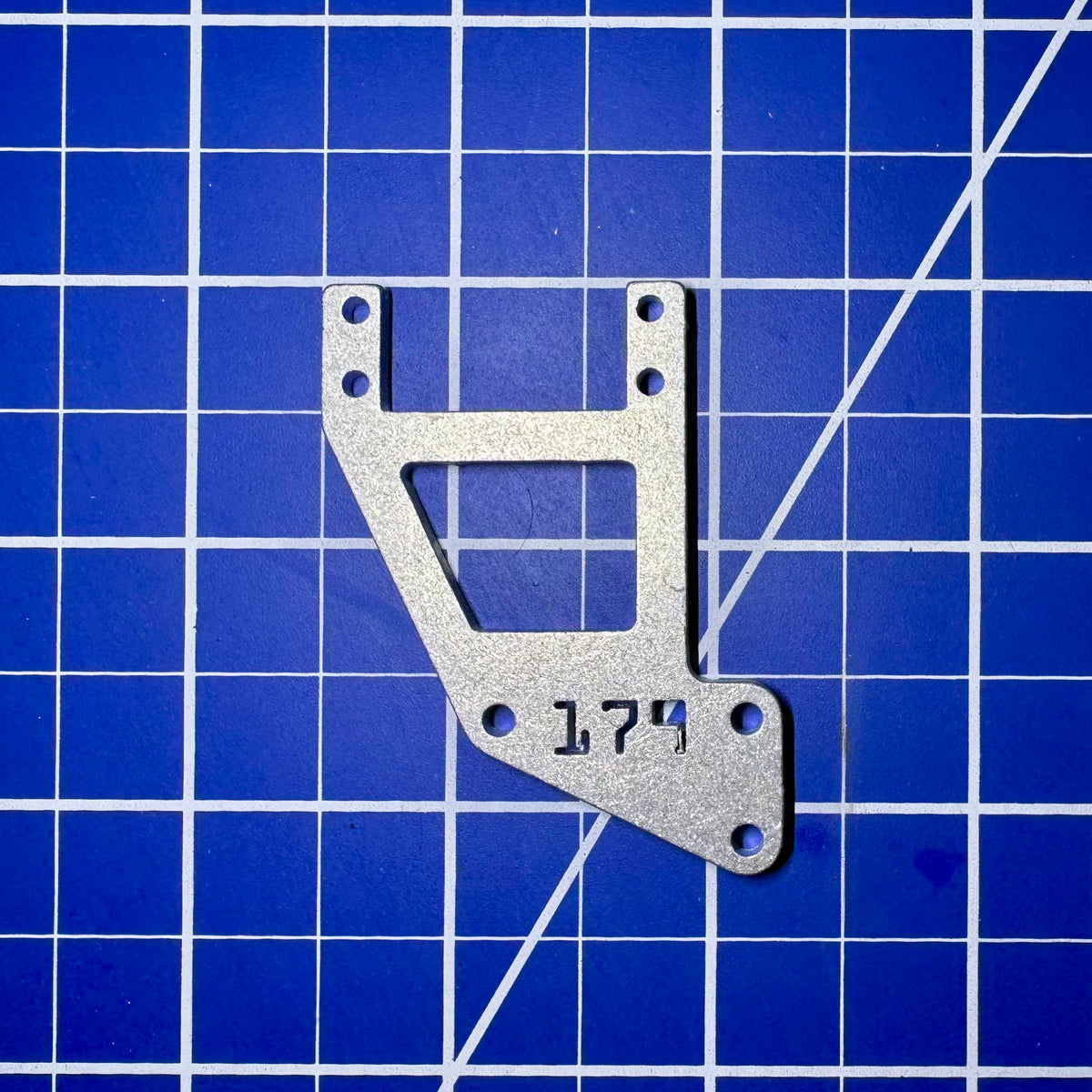

179/99Micro: Holmes Hobbies HV150, Reefs 99/179

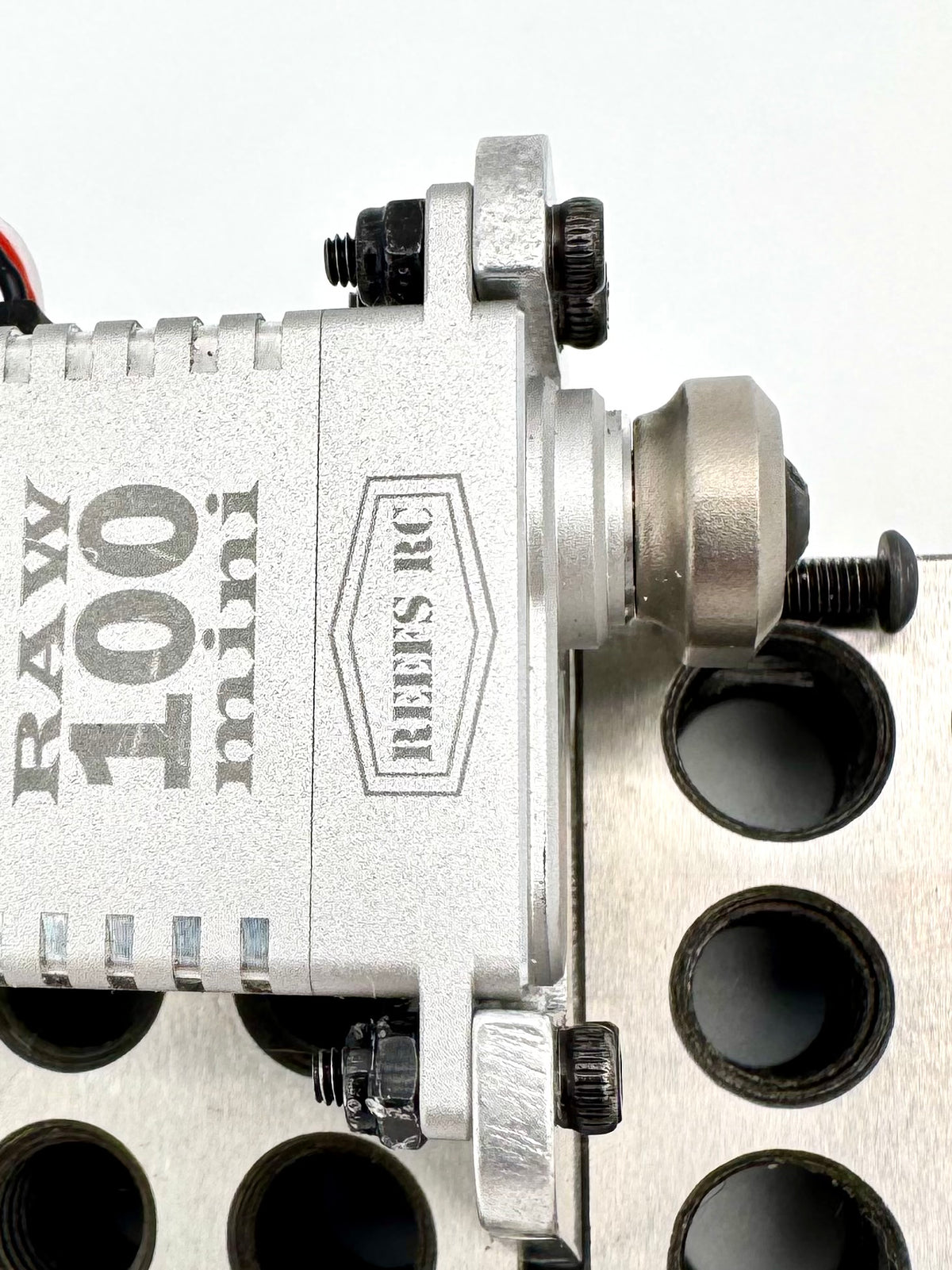

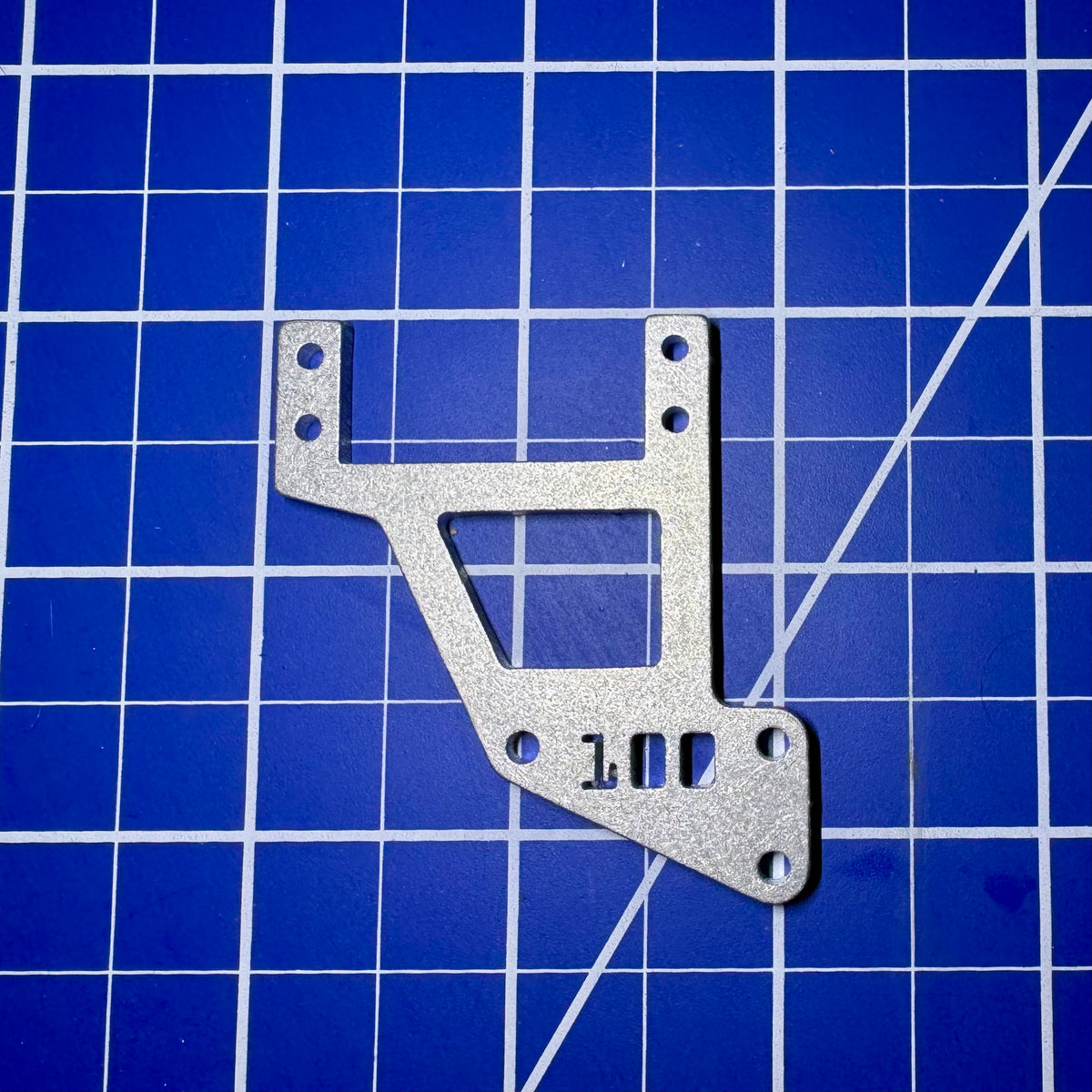

Raw100: Reefs Raw100
If using a micro servo, it is highly recommended that you choose one with a full size 25T spline output shaft, like a full size servo. This will allow for use of the stock servo horn included with the URB. Micro servos with small output shafts are more difficult to use because of the smaller servo horns they require
-Use care while setting your servo end points in your radio as the micro servos, while strong enough for the task, can burn out easily if end points are not set properly!
