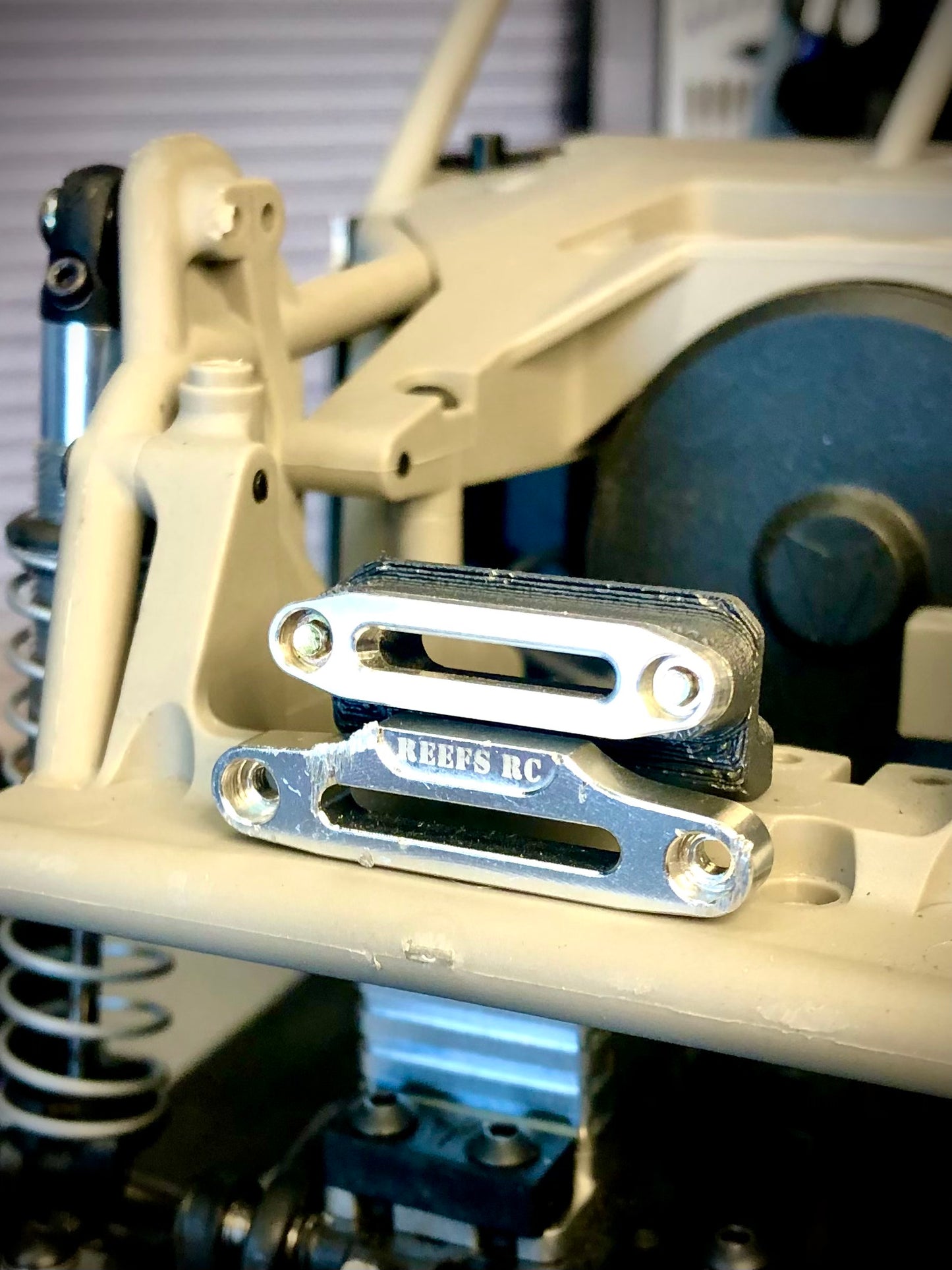

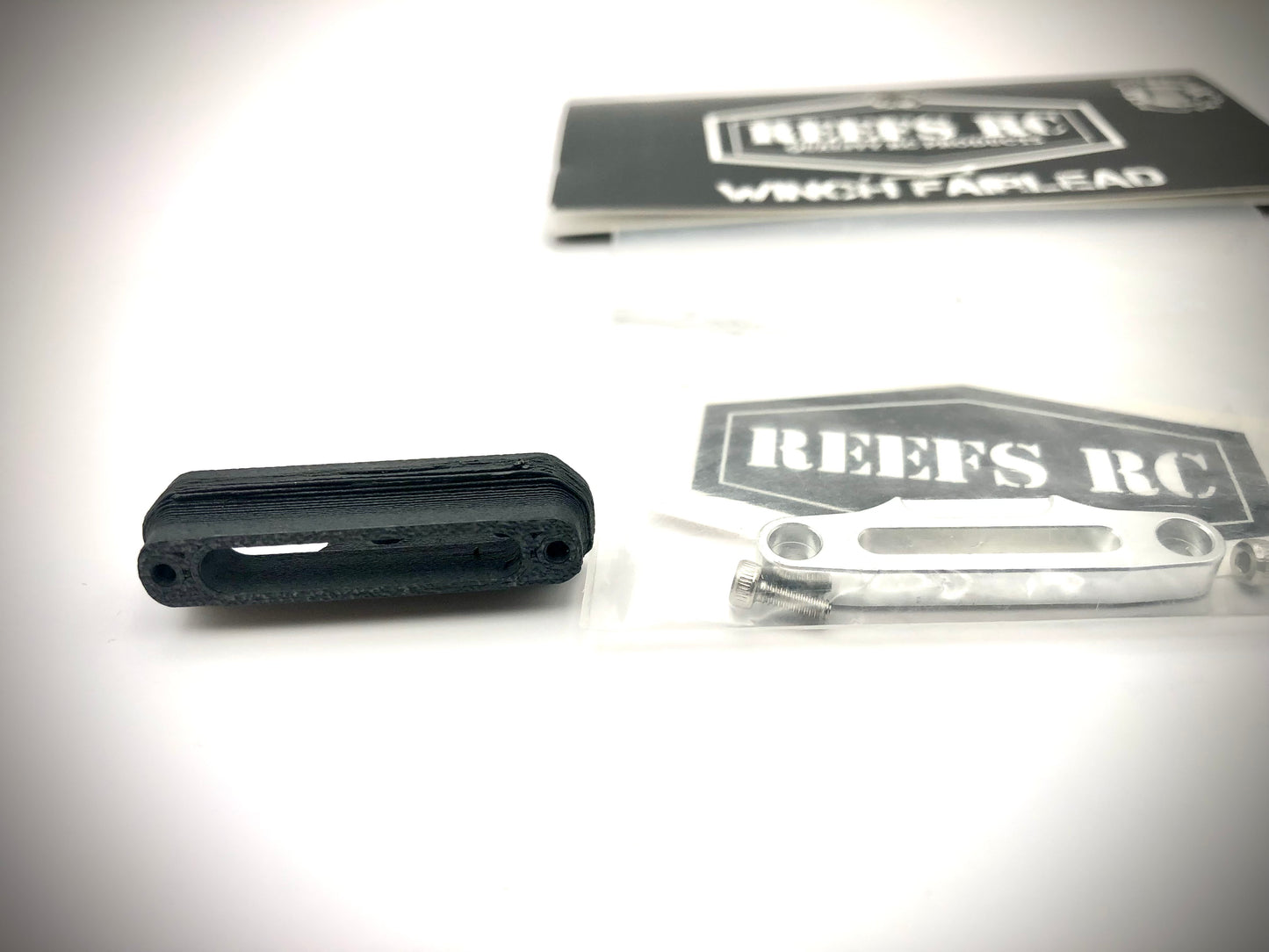

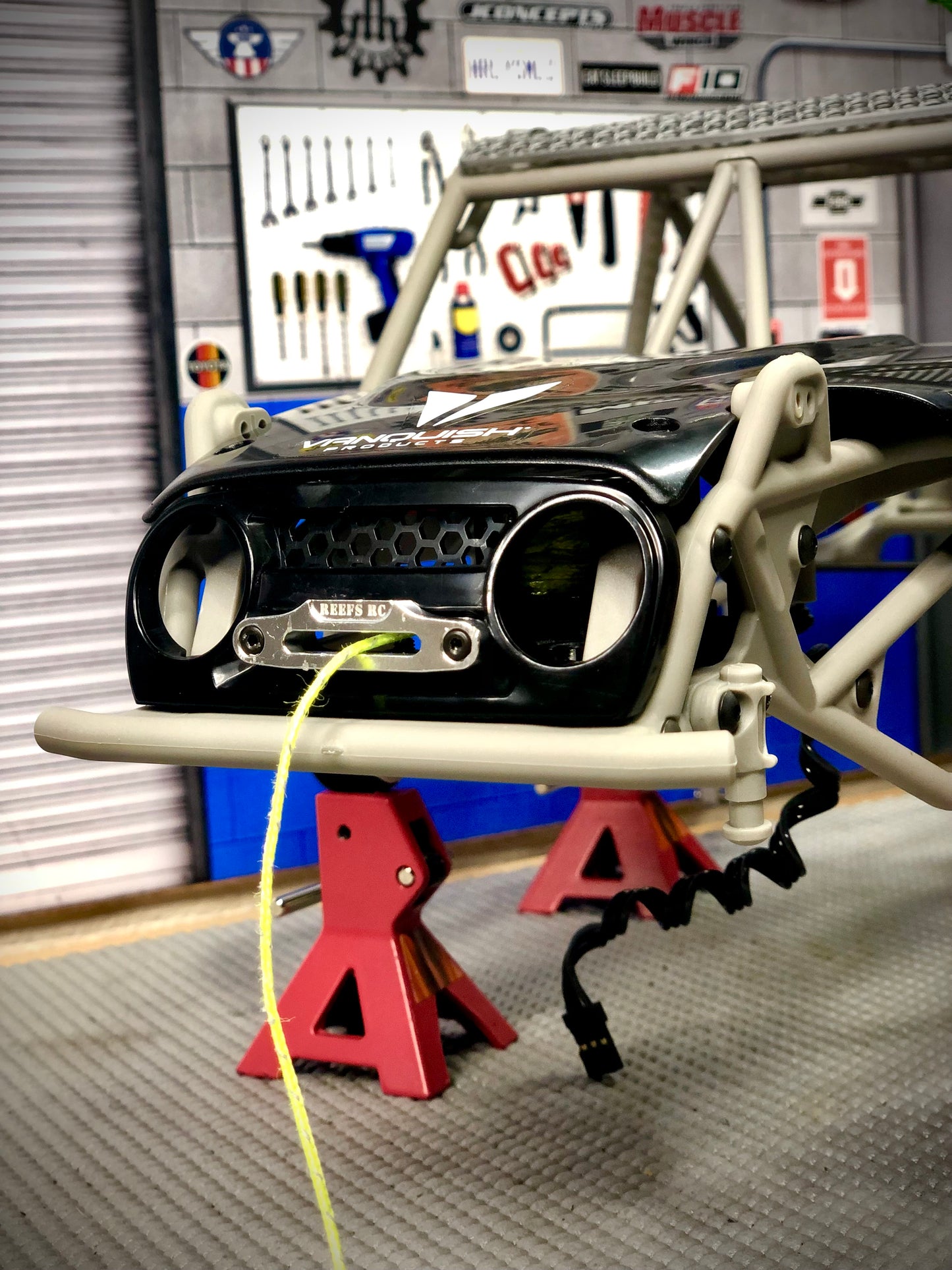

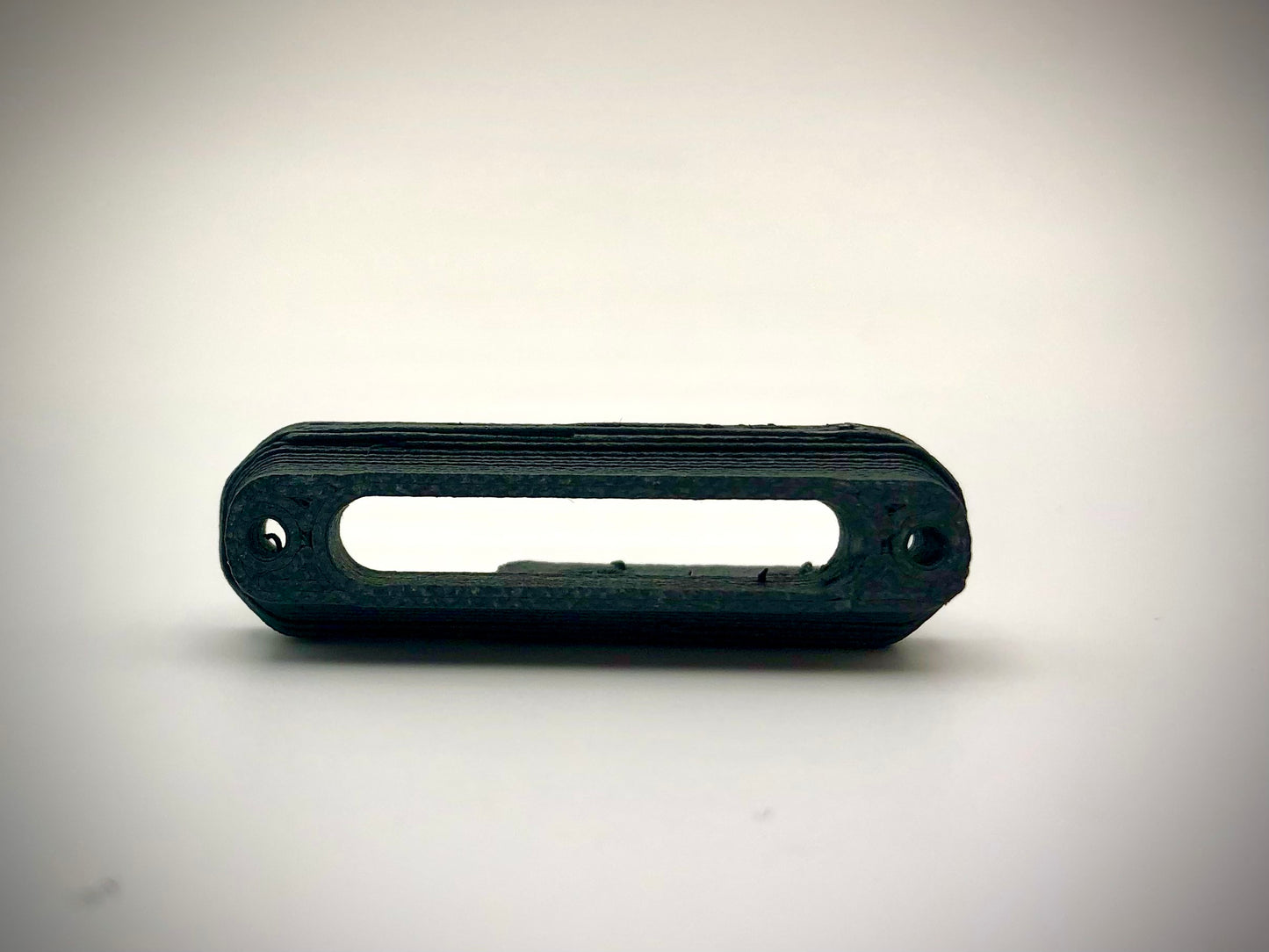

H10 Optic Winch Fairlead Mount

3D Printed in PETG-CF titan grey

Designed for fairleads with 29.5mm or 24mm wide mounting holes

Requires removing the lower mesh portion of the grill

Mounts to existing holes in the chassis with M3 screws:

-29.5mm use M3x8mm

-24mm use M3x10mm

Fairlead not included

Installation Instructions:

29.5mm:Attach fairlead and fairlead mount to grill first then attach grill/fairlead sub-assembly to chassis

24mm: Attach fairlead to mount first, then attach mount to chassis. Install grill last

*29.5mm fairlead can be used with the CrawlNYC FJ40 grill with minor modification to the grill.

*24mm fairlead fits FJ40 grill with no modification.
